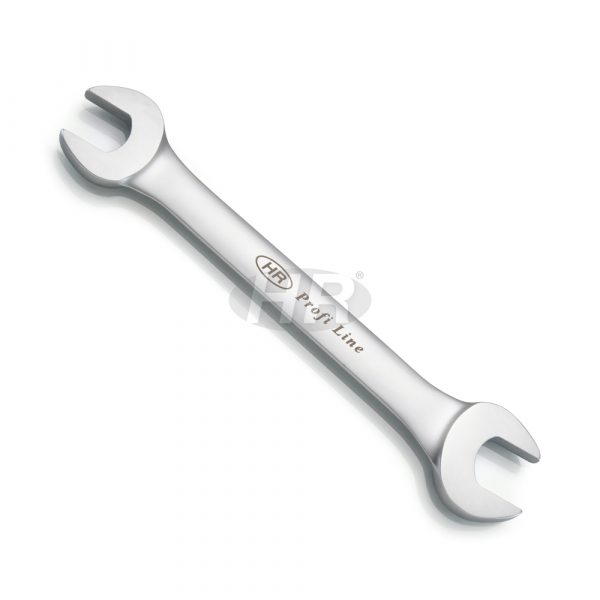

These tools are drop forged and are made of high quality Chrome Vanadium Steel. The manufacturing process is perfected to achieve the desired strength and rigidity as per DIN standards.
Specifications
| Article No. | Size (mm) | Size (inch) | Length (mm) | Qty./Ctn. (pcs.) | Net Wt. (kgs) | Gr.Wt. (kgs) |
|---|---|---|---|---|---|---|
| 30101 | 6 x 7 | 1/4 x 5/16 | 123 | 1000 | 24.000 | 25.500 |
| 30102 | 8 x 9 | 5/16 x 11/32 | 137 | 600 | 19.200 | 21.000 |
| 30103 | 10 x 11 | 3/8 x 7/8 | 153 | 400 | 20.000 | 21.500 |
| 30104 | 12 x 13 | 7/16 x 1/2 | 173 | 300 | 20.700 | 22.000 |
| 30105 | 14 x 15 | 1/2 x 9/16 | 187 | 200 | 19.000 | 20.500 |
| 30106 | 16 x 17 | 19/32 x 11/16 | 202 | 150 | 18.900 | 20.500 |
| 30107 | 18 x 19 | 5/8 x 3/4 | 221 | 100 | 17.300 | 19.000 |
| 30108 | 20 x 22 | 13/16 x 7/8 | 236 | 100 | 22.300 | 24.000 |
| 30109 | 21 x 23 | – | 246 | 80 | 21.600 | 23.000 |
| 30110 | 24 x 26 | 15/16 x 1 | 265 | 60 | 23.400 | 25.000 |
| 30111 | 25 x 28 | 1 x 1.1/8 | 275 | 40 | 18.800 | 20.500 |
| 30112 | 30 x 32 | 1.3/16 x 11.4/4 | 300 | 40 | 22.400 | 24.000 |
| 30113 | 30 x 34 | – | 310 | 30 | 19.500 | 21.000 |
| 30114 | 30 x 36 | – | 320 | 30 | 21.000 | 22.500 |
| 30115 | 36 x 41 | – | 370 | 20 | 20.000 | 21.500 |
Sets
| Set No. | No. of pcs./set | Size (mm) | Qty./Ctn. (pcs.) | Net Wt. (kgs) | Gr.Wt. (kgs) |
|---|---|---|---|---|---|
| 30180 | 6 | 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 | 60 | 26.100 | 27.500 |
| 30181 | 8 | 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17. 18 x 19, 20 x 22 | 20 | 17.500 | 19.000 |
| 30182 | 12 | 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32 | 10 | 25.650 | 27.000 |
